Remote Timer Displays
All Timer Displays have the following features:
- user-selectable leading zero blanking
- High impedance differential input
- Bright flicker-free LED display
- RS-422 time code input
- Requires only a simple 2-conductor shielded cable to interface to a master timer
Model: TMR-111R
A rack mounting remote timer display
Display: 0.8" (20.3 mm)
Seven segment display
LED Colors: Red, Green, Amber
9 Volt 300Ma, DC Input
1 Rack Unit:
Case Dim: 19"W x1.75"H x 8.25"D
(483mm W x 44.5mmH x 210mmD)

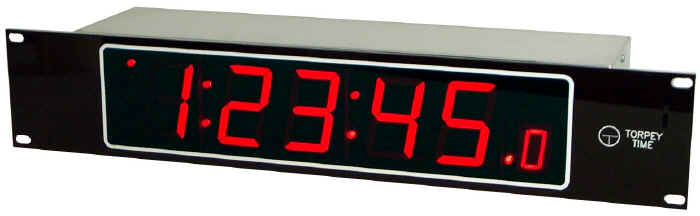

Model: STR-20B
The STR-20B is a 2-rack unit high display suitable for displaying time in mobile vans, large production control rooms, studios, or in areas where visibility up to 60 feet (18 m) is required.
Dimensions:
Display: 2.25" (57.2 mm)
Case: 2 rack-units --- 19 W x 3.5" H x 4.25"D (483 x 89 x 108 mm)
Standard Features:
Bright, Flicker-free LED Display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master timer. For desk mount units, 6 ft. of cable is built in.
The STR-20x and STR-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.

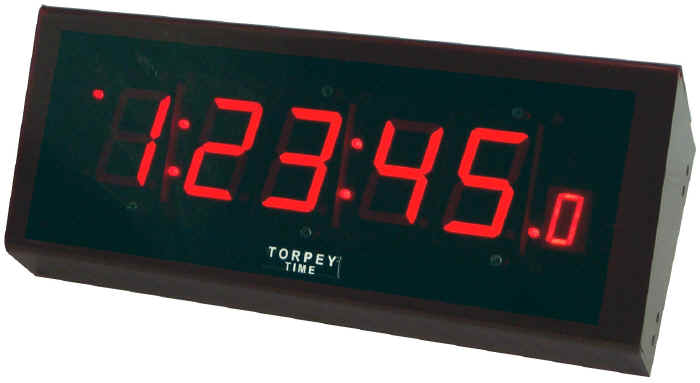

Model: STR-20A
Ths display is suitable for displaying time in large production control rooms, studios, or in areas where visibility up to 60 feet (18 m) is required. Its sloped face allows for easier viewing.
Dimensions:
Display: 2.25" (57.2 mm)
Case: 15.2" W x 5.8" H x 3.8"D (386 x 147 x 97 mm)
Standard Features:
Bright, Flicker-free LED Display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master timer. For desk mount units, 6 ft. of cable is built in.
The STR-20x and STR-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.

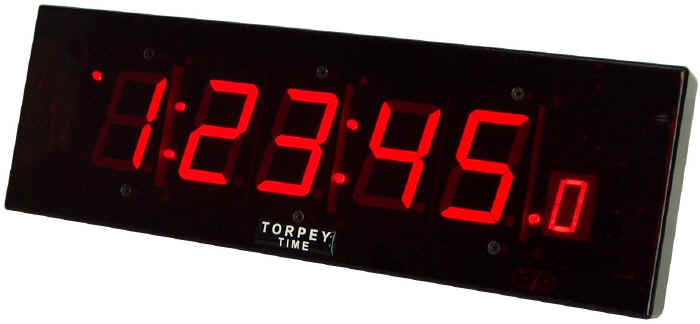

Model: STR-20C
This thin profile display is suitable for displaying time in large production control rooms, studios, or in areas where visibility up to 60 feet (18 m) is required.
Dimensions:
Display: 2.25" (57.2 mm)
Case: 15.2" W x 4.9" H x 1.3"D (386 x 125 x 33 mm)
Standard Features:
Bright, Flicker-free LED Display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master timer. For desk mount units, 6 ft. of cable is built in.
The STR-20x and STR-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
Model: STR-40A
Ths display is identical to the STR-40C display but housed in an attractive solid oak case. It is perfect for large studios, the lobby, or audience areas and is viewable from up to 200 ft. (60 m) away.
Dimensions:
Display: 4" (101.6 mm)
Case: 25.5"W x 8.5"H x 2.75"D (648 x 216 x 70 mm)
Standard Features:
Bright, Flicker-free LED Display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master timer. For desk mount units, 6 ft. of cable is built in.
The STR-20x and STR-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
Model: STR-40C
This thin profile is perfect for large studios, the lobby, or audience areas and is viewable from up to 200 ft. (60 m) away.
Dimensions:
Display: 4" (101.6 mm)
Case: 24.5"W x 7.3"H x 2.2"D (622 x 185 x 559 mm)
Standard Features:
Bright, Flicker-free LED Display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master timer. For desk mount units, 6 ft. of cable is built in.
The STR-20x and STR-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
