Timers
-
![]()

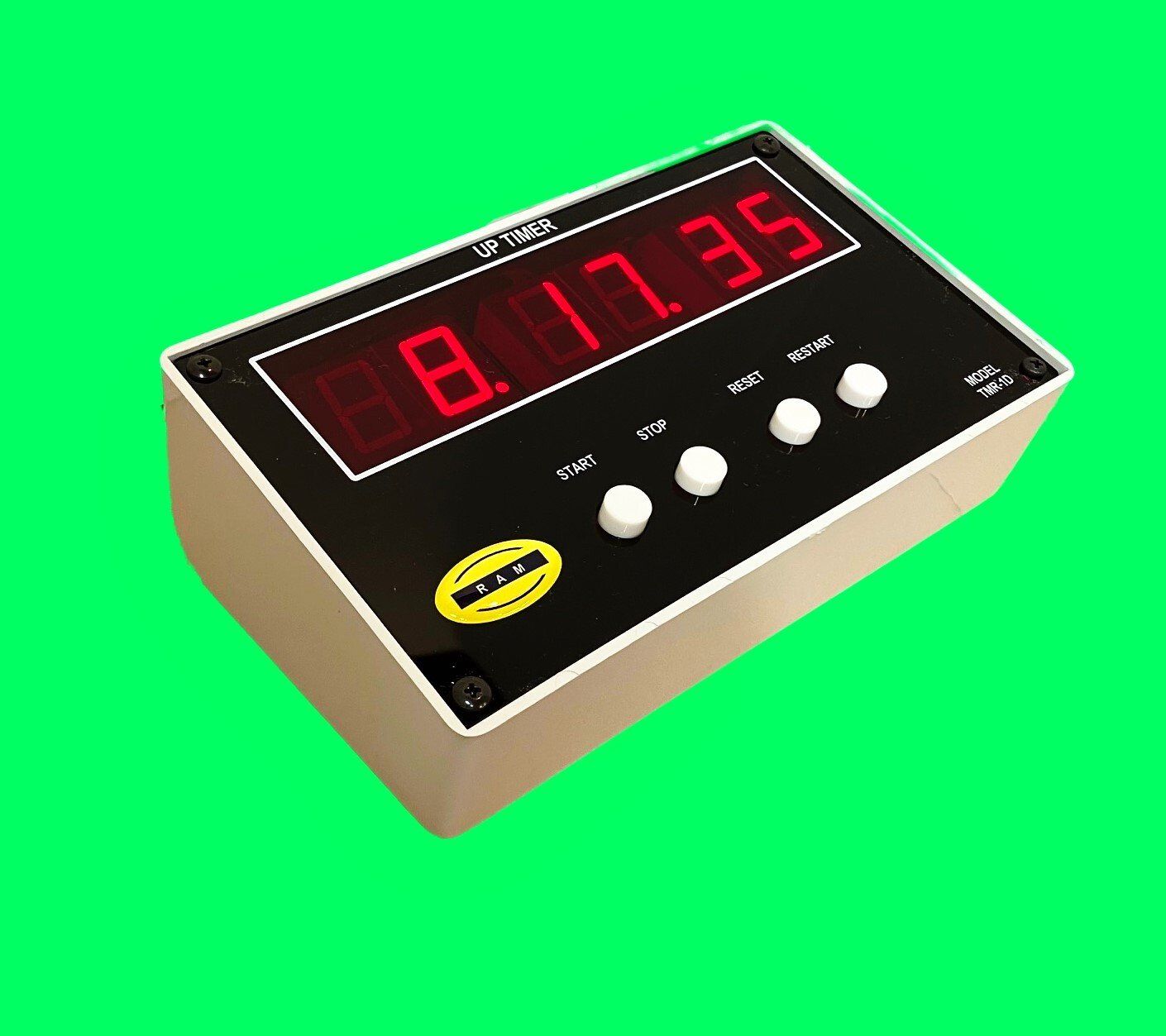

TMR-1D
ButtonDesk Top Up Timer
Description:
-Bright, flicker free LED display
-10 hour range
-Hour, Minute, Second Timing
-"Restart" remote control plug in rear
-Optional switchable clock display acceptingSMPTE, DQS, TC89, TC90 time codes
-Displays are 0.8" (20.32 mm) bright red LED
-Dimensions are: 6.35"W x 2.3"H x 3.8"D (161.29 x 58.42 x 96.52 mm)
-Input power: 9VDC
The local controls are as follow:
START - Starts the timer
STOP - Stops the timer
RESET - Reset timer to zero when stopped
RESTART - Resets timer to zero while running and restarts.
-
![]()

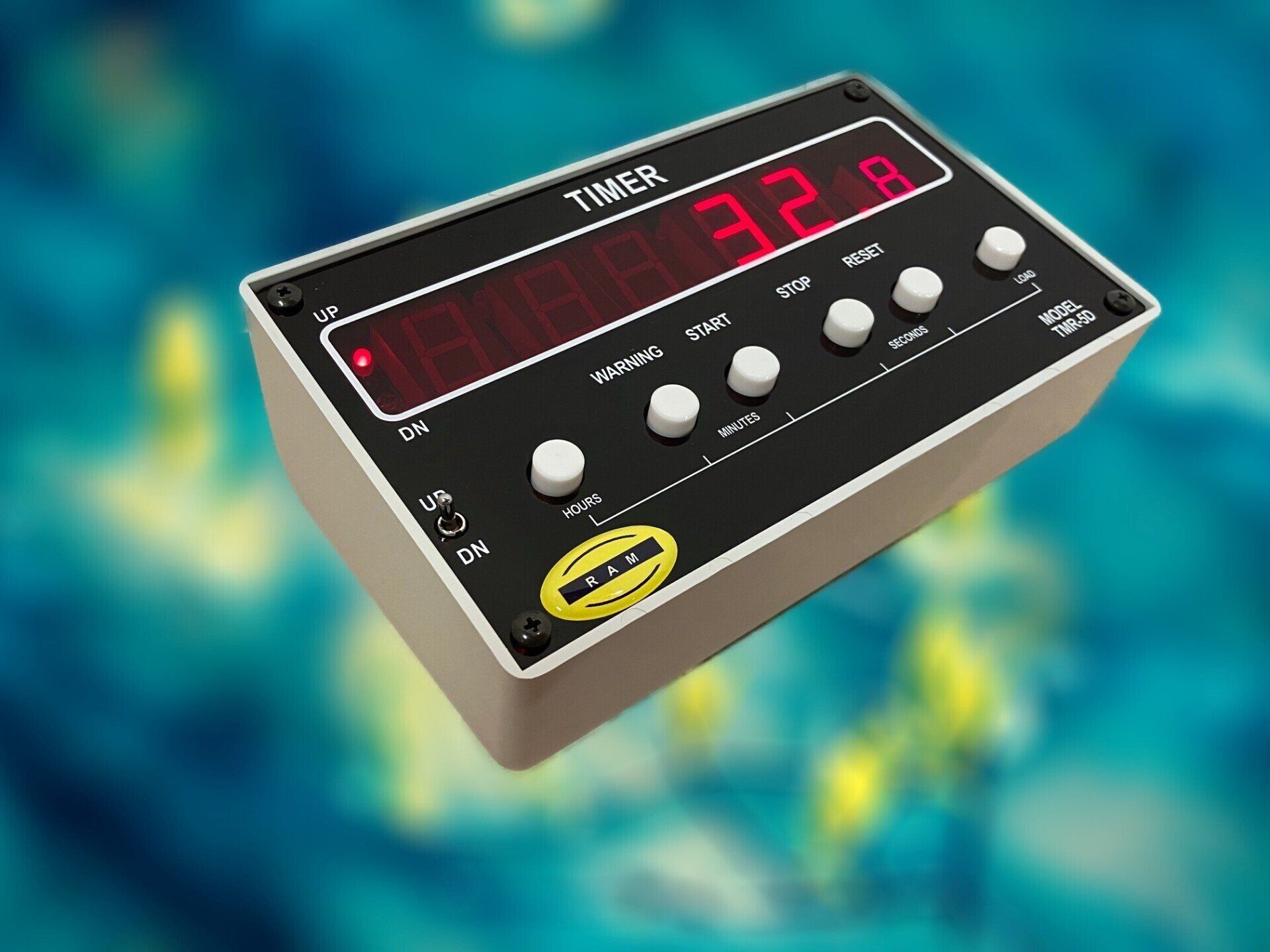

TMR-5D
ButtonMaster Desk Top Up/Down Timer
Description:
-Bright, flicker free LED display
-10 hour range
-Timing resolution of 1/10th of a second
-Counts up or down
-Can be loaded with any time value including negative time
-Can be preset while running to shorten load time.
-Can be set to stop at zero or continue counting in either direction.
-Wide variety of remote timer displays.
-Output drive capacity: 50 remote timer displays, up to 4,000 ft.
-Displays are 0.8" (20.32 mm) bright red LED
-Dimensions are: 6.35"W x 2.3"H x 3.8"D (161.29 x 58.42 x 96.52 mm)
-Time code output is a variant of DQS time code transmitted using RS-422 signal levels. Balanced, low z
-Input power: 9VDC
The local controls are as follow:
HOURS - With the LOAD pressed, changes the hours
STORE - Stores current time while running. With LOAD pressed, changes tens of minutes.
START - Starts the timer. With LOAD pressed changes units of minutes.
STOP - Stops the timer. With LOAD pressed, changes tens of seconds.
RESET - Reset timer to zero when stopped
RESTART - Resets timer to zero. With LOAD pressed, changes units of seconds.
LOAD - Loads or preloads time into timer.
UP/DOWN - Switches between counting up or down. Works only when timer is stopped.
-
![]()

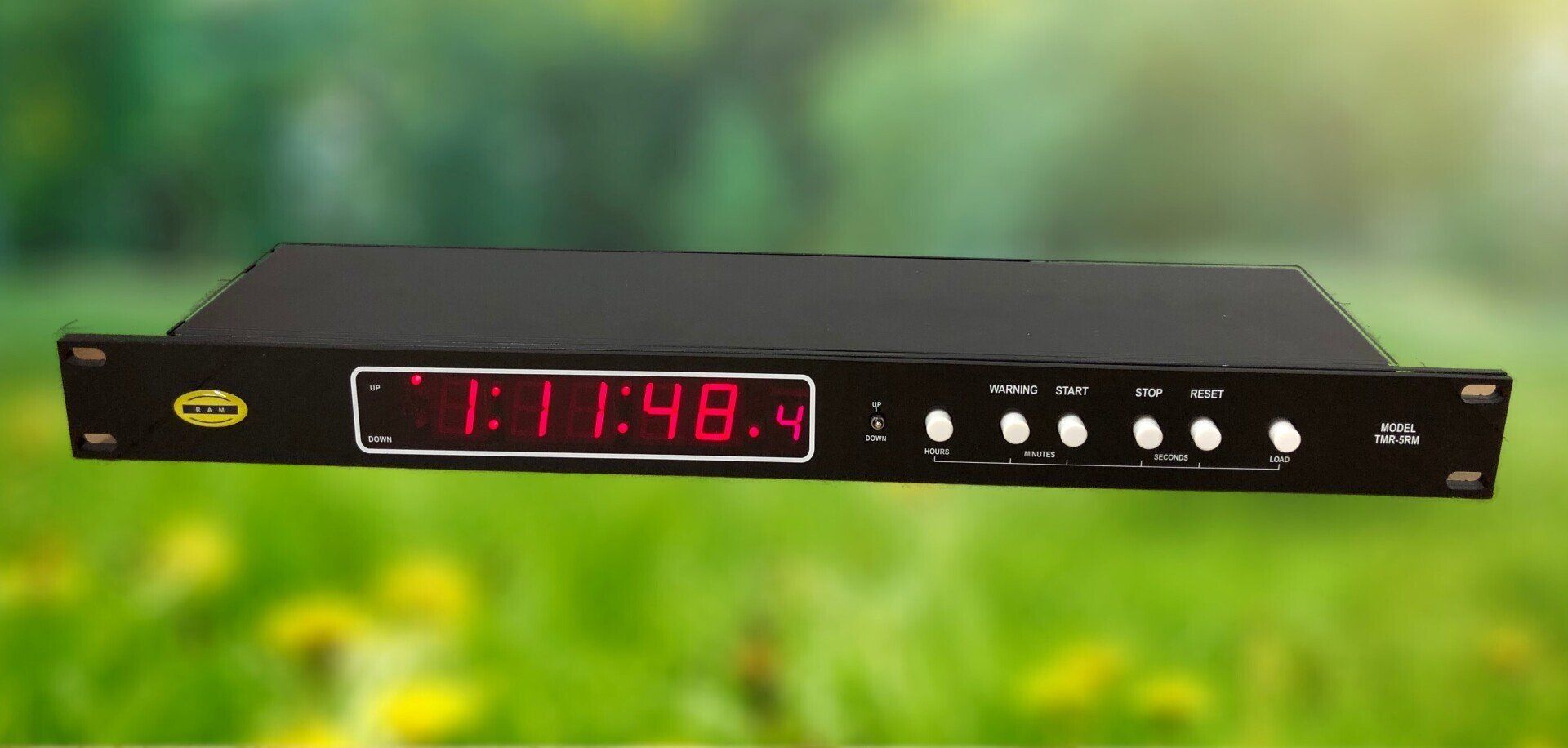

TMR-5RM
ButtonMaster Rack Mount Up/Down Timer
Description:
-Bright, flicker free LED display
-10 hour range
-Timing resolution of 1/10th of a second
-Counts up or down
-Can be loaded with any time value including negative time
-Can be preset while running to shorten load time.
-Can be set to stop at zero or continue counting in either direction.
-Wide variety of remote timer displays.
-Output drive capacity: 50 remote timer displays, up to 4,000 ft.
-Displays are 0.8" (20.32 mm) bright red LED
-Dimensions are: 19"W x 1.75"H x 4"D (482.6 x 44.45 x 101.6 mm)
-Time code output is a varient of DQS time code transmitted using RS-422 signal levels. Balanced, low z
-Input power: 9VDC
The local controls are as follow:
HOURS - With the LOAD pressed, changes the hours
STORE - Stores current time while running. With LOAD pressed, changes tens of minutes.
START - Starts the timer. With LOAD pressed changes units of minutes.
STOP - Stops the timer. With LOAD pressed, changes tens of seconds.
RESET - Reset timer to zero when stopped. With LOAD pressed, changes units of seconds.
LOAD - Loads or preloads time into timer.
UP/DOWN - Switches between counting up or down. Works only when timer is stopped.
