Master Digital Clocks

Master Digital Clocks

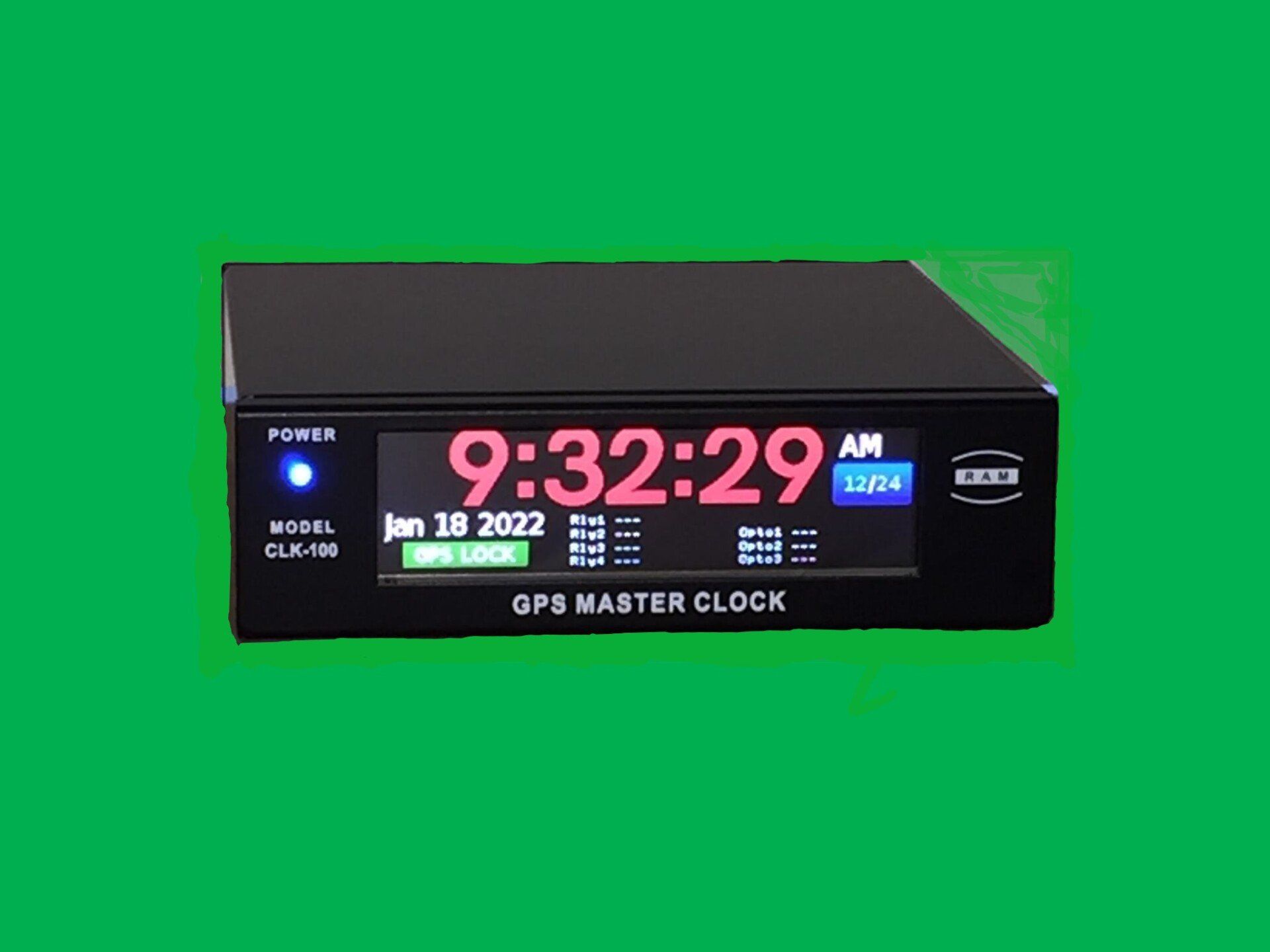

CLK-100


FEATURES:


  • Balanced SMPTE serial time code output on regular 2 conductor shielded cable.
  • NTP output on RJ45.
  • Daylight savings / Standard Time (selectable).
  • Local display uses large, bright digits and can be switched between 12 and 24 hour modes.
  • The CLK-100 is designed for those installations where only digital time displays are needed. It is a desk top unit which may also be mounted onto a rack shelf.
  • The local display is viewable up to a distance of 25 Ft ( 8 m ).
  • 3 Opto outputs.
  • 4 form C relay outputs.
  • GPS Lock display.
  • Time and Date display.
  • Opto and Relay activation display.
  • Programmed date and time Relay/Opto switching.
  • Dimensions: 5-3/4” W x 6-1/4” D x 1-5/8” H.
