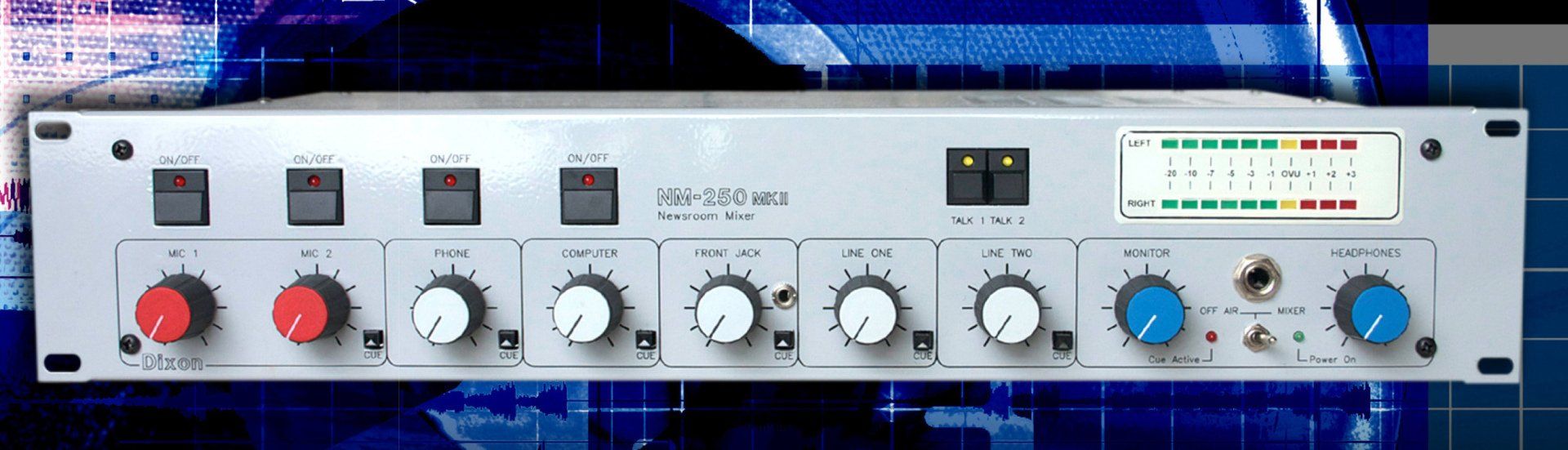

Dixon Systems NM-250 MKII Newsroom Mixer is a proven performer in hundreds of radio and television stations. It's perfect for many broadcast studios and contains almost all of the features of a full broadcast console.

Over the past year or so, we've been listening to comments and suggestions from demanding engineers like you. You've made some very good suggestions and we've incorporated them into NM-250 MKII.

Contact your favorite dealer for more information and pricing.

Features & Specifications:

Phantom Power Built In (48v)

Line-Input For Telephone Hybrid

Input/Output For Computer Sound Card

Front Panel Jack Input For Unbalanced DAT/Cassette Recorders

2 Balanced +4dBm Line Inputs (may be connected to switcher to increase inputs)

Built In Mix-Minus Bus For Feeding Telephone Hybrid

Built In Talkback System With 2 Send and Receives

LED VU Meter Display

Monitor Select (Mixer Output or Off-Air)

Built In Cue System With Dimming

Built In Headphone Amp

Monitor Output Mutes When Mic Is On

Great Performance Specifications

Economically Priced!!!

Outputs:

Main Outputs: (L&R): balanced +4dBm

Sound Card: unbalanced, - 10dBm (L&R)

Monitor Output: (L&R): balanced + 4dBm (Gain Varied By Front Panel Control)
