Remote Clock Displays
All clock displays have the following features:
- User-selectable 12 hour display with AM/PM indicators or 24-Hour display
- User-selectable leading zero blanking
- Ability to decode a variety of industrial standard time codes including SMPTE-LTC, EBU,DQS,ESE,TC89,TC90
- Time Zone offset selections
- High impedance differential input
- Bright Flicker-Free LED display
-
![]()

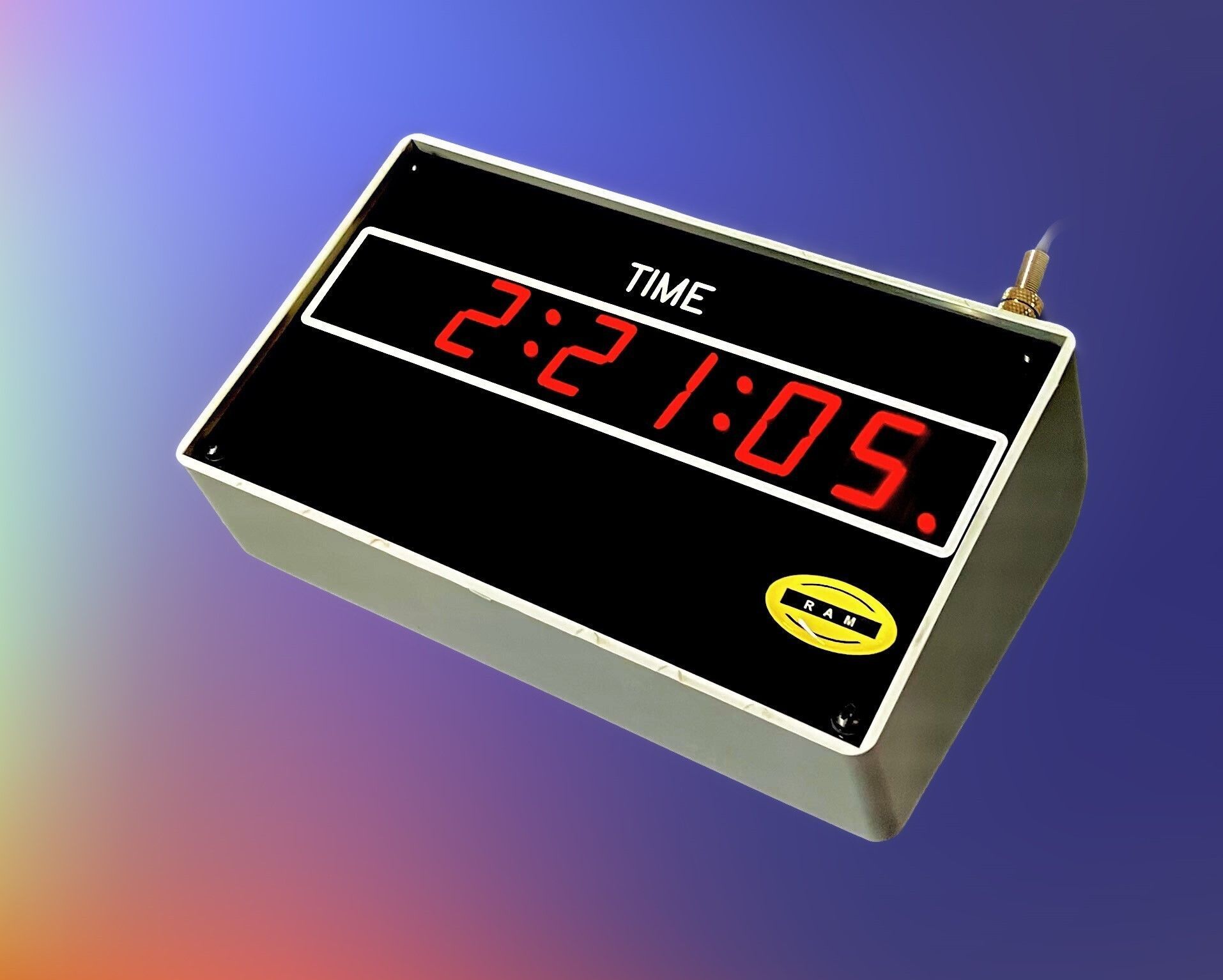

Model: CLK10R
ButtonDesk or console mounting remote clock display
Display: 0.8" (20.3mm) seven segment display
LED Colors: Red, Green, Amber
9 Volt,300Ma DC Input
Case Dim: 6.35"W x 2.3" H x 3.8"D (161.3 x 58.4 x 96.5 mm)
-
![]()

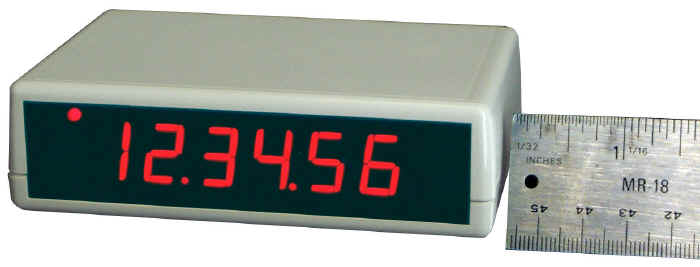

Model: CLK16
ButtonThis Display is particularly suitable for displaying time above video monitors and teleprompters, or for mounting in areas where space is limited, while maintaining large, clear, bright digits.
Dimensions:
Display: 0.56" (14.2mm)
Case: 4.5"W x 1.25" H x 3"D (114.3 x 31.8 x 76.2mm)
Standard Features:
Bright, Flicker-free LED Display
Ability to decode a variety of industry standard time codes through jumper settings
User programmable
User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
-
![]()

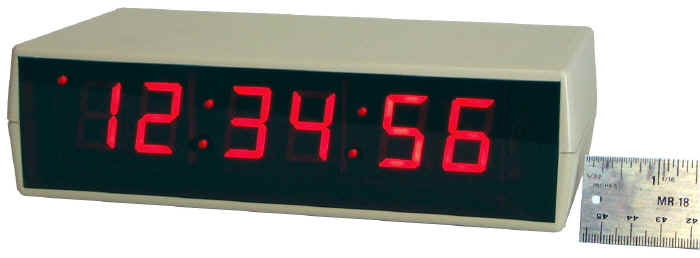

Model: CLK-19
ButtonThis Display is particularly suitable for displaying time above video monitors and teleprompters, or for mounting in areas where space is limited, while maintaining large, clear, bright digits.
Dimensions:
Display: 1" (25.4m)
Case: 8"W x 2.25" H x 4.25"D (203.2 x 57.2 x 108mm)
Standard Features:
Bright, Flicker-free LED Display
Ability to decode a variety of industry standard time codes through jumper settings
User programmable
User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
-
![]()
Model: CLK-111R
ButtonA clock display with 0.8" LED displays in a one rack unit frame
Dimensions:
19"W x 1.75"H x 8.25"D
(483mm x 44mm x 210mm)
Bright, flicker-free LED display
-Ability to decode a variety of industry standard time codes through jumper settings.
-User programmable time zone offsets.
-AM/PM indicators or a 24 hour display
-The local display is viewable up to a distance of 30ft (9m)
-User selectable leading zero blanking
-Requires only a simple 2-conductor shielded cable to interface to a master clock.
-For desk mount units, 6 ft. of cable is built in.
-Input Level: 2.6V p-p min.
-Impedance: 10KW min. differential input (balanced)
-Power Requirements: 9 VDC, 300 ma1
-
![]()

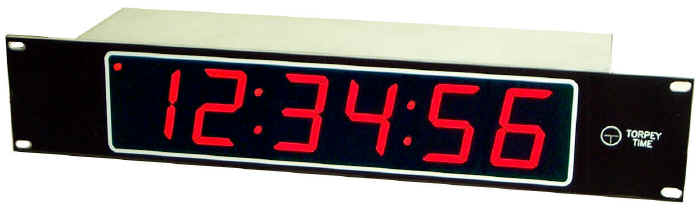

MODEL: CLK-20A
ButtonThe CLK-20A is a 2 rack-unit high display suitable for displaying time in mobile vans, large production control rooms, studios, or in areas where visibility up to 60 feet (18m) is required.
Dimensions:
Display: 2.25" (57.2mm)
Case: 2 Rack-Units --- 19"W x 3.5"H x 4.25"D (483 x 89 x 108 mm)
Standard Features:
Bright, Flicker-free LED Display
Ability to decode a variety of industry standard time codes through jumper settings
User programmable time zone offset
User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
-
![]()

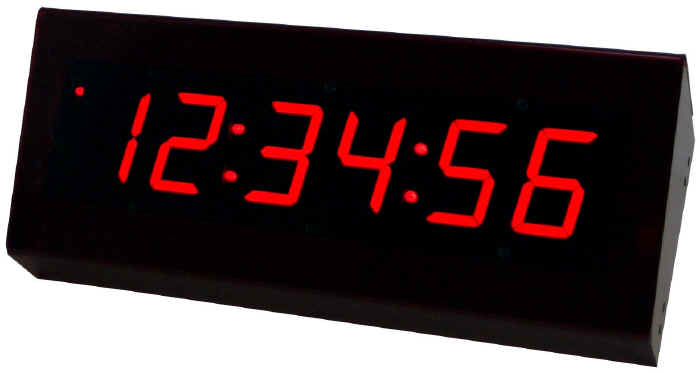

MODEL: CLK-20B
ButtonThis display is suitable for displaying time in large production control rooms, studios, or in areas where visibility up to 60 feet (18m) is required. Its sloped face allows for easier viewing
Dimensions:
Display: 2.25" (57.2mm)
Case: 15.2"W x 53.8"H x 3.8"D (386 x 147 x 97 mm)
Standard Features:
Bright, Flicker-free LED Display
Ability to decode a variety of industry standard time codes through jumper settings
User programmable time zone offset
User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
-
![]()
MODEL: CLK-20CR
ButtonThin Profile Wall Mount Remote Clock Display with "RED" 2.25" LED Displays.
Case Dimensions:
15.2"W x 4.9"H x 1.3"D (386 x 125 x 33 mm)
Standard Features:
Visibility up to 60ft. (18 m)
Bright, Flicker-free LED Display
Time code Inputs: SMPTE/EBU, DQS, ESE (TC89,TC90)
Programmable time zone offsets
User settable to either a 12 hour or 24 hour mode with AM/PM indicators.
User selectable leading zero blanking.
RS-422 time code input.
Requires only a simple 2-conductor shielded cable to interface to a master clock. Input impendance is 10K differential (balanced)
Input voltage: 12 volt DC, .5A

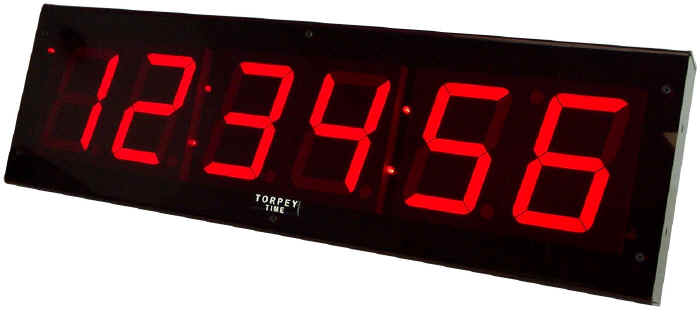

MODEL: CLK-40C
This thin profile is perfect for large studios, the lobby, or audience areas and is viewable from up to 200 ft. (60m) away.
Dimensions:
Display: 4" (101.6 mm)
Case: 24.5"W x 7.3"H x 2.2"D (622 x 185 x 559 mm)
Standard Features:
Bright, Flicker-free LED Display
Ability to decode a variety of industry standard time codes through jumper settings
User programmable time zone offset
User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.

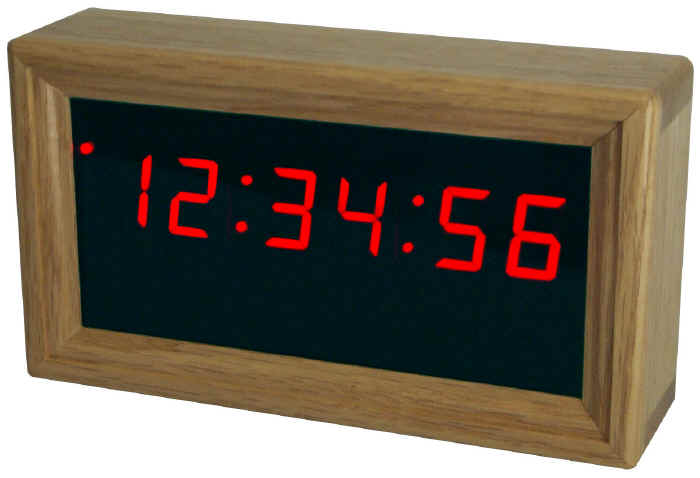

Model: CLK-102
A wall mounting unti that offers a bright LED display housed in an attractive solid oak case. It can be used in control rooms, viewing areas, artist's lounges, or any place where prestige decor is employed. The display is viewable up to 30 feet away.
Dimensions:
Display: 1" (25.4mm)
Case: Width 8.2",Height 3.6",Depth 2.1"(208.3mm Wide, 91.4mm High, 53.3mm Deep)
Standard Features:
Bright, Flicker-free LED Display
Ability to decode a variety of industry standard time codes through jumper settings
User programmable time zone offset
User settable to either a 12 hour display with AM/PM indicators or a 24 hour display
User selectable leading zero blanking
RS-422 time code input
Requires only a simple 2-conductor shielded cable to interface to a master clock. For desk mount units, 6 ft. of cable is built in.
The CLK-20x and CLK-40x series displays are non multiplexed. This means that you can use these displays on video and film without producing flicker.
Specifications:
Code Input: SMPTE/EBU,DQS,ESE(TC76,TC89,TC90) NPR,NMEA,IRIG-B
Input Level: 2.6V p-p min.
Impedance: 10KW min. differential input (balanced)
Power Requirements: In North America, all units are supplied with plug-in power adapter. In other countires: 12VAC, 50/60 Hz power required.
