Installation Products
-2.1mm Power Jack with screw terminals

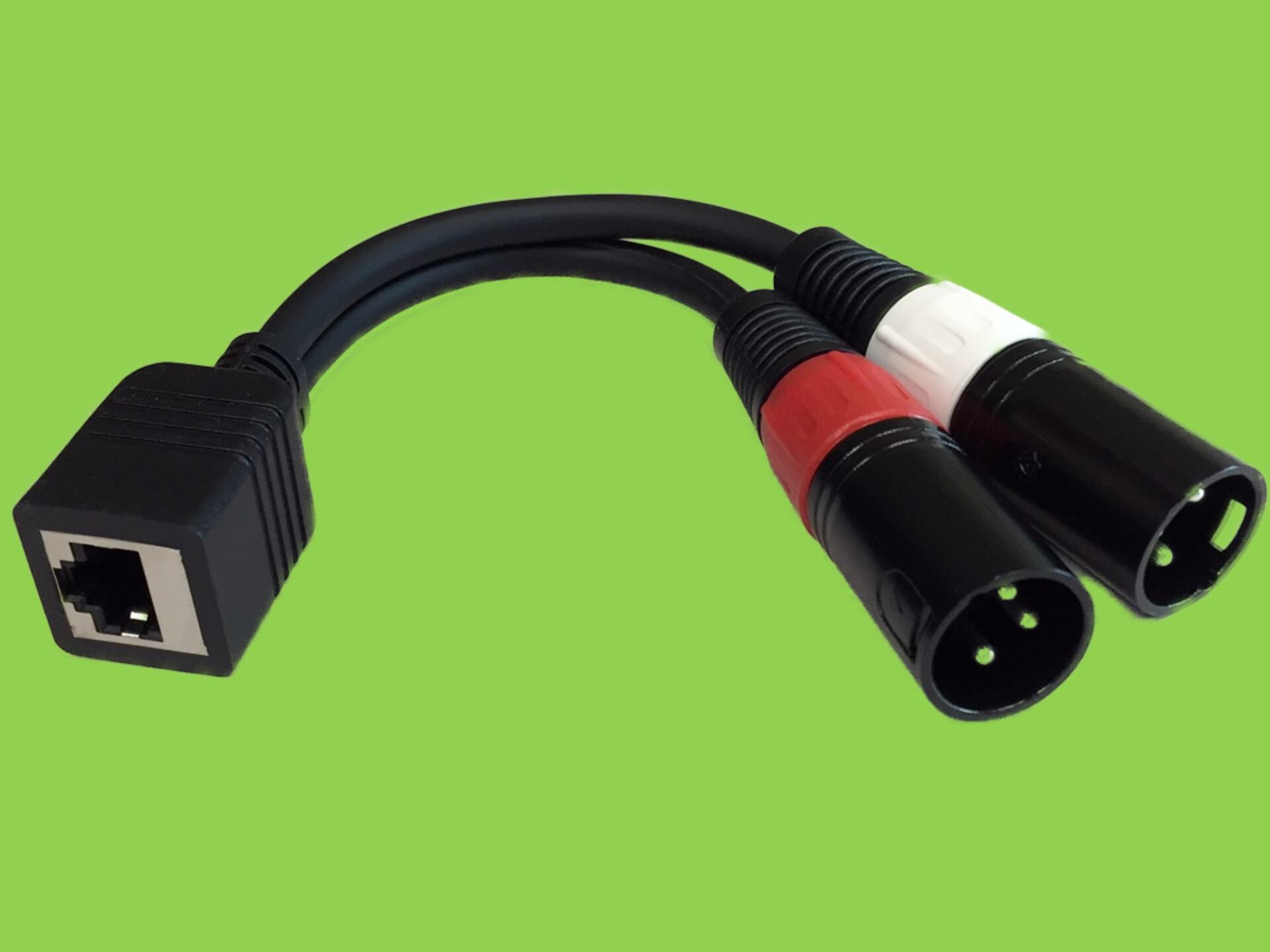

-Female RJ-45 to dual XLR3 Male connectors
- Cable is 7" Long
- Pinouts meet EIA/TIA 568A/568B and At&T 258A standards
-(Studio Hub Compatible)
- Left (white) Pin 1and 2
-Right (red) Pin 3&6
Jacket: Black

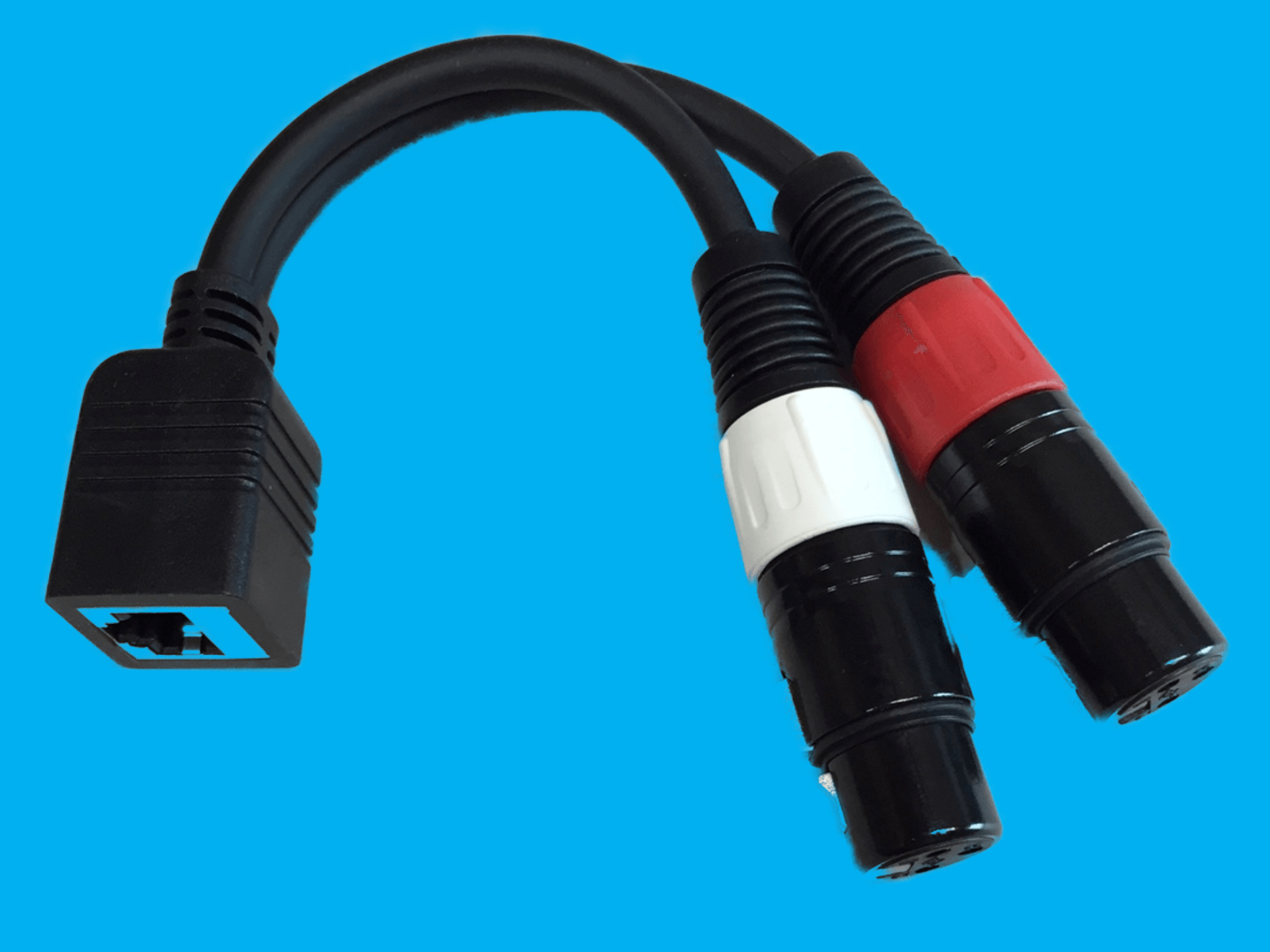

-Female RJ-45 to dual XLR3 Female connectors
-Cable is 7" long
-Pinouts meet EIA/TIA 568A/568B and At&T 258A standards
-(Studio Hub Compatible)
- Left (white) Pin 1and 2
-Right (red) Pin 3&6
Jacket: Black

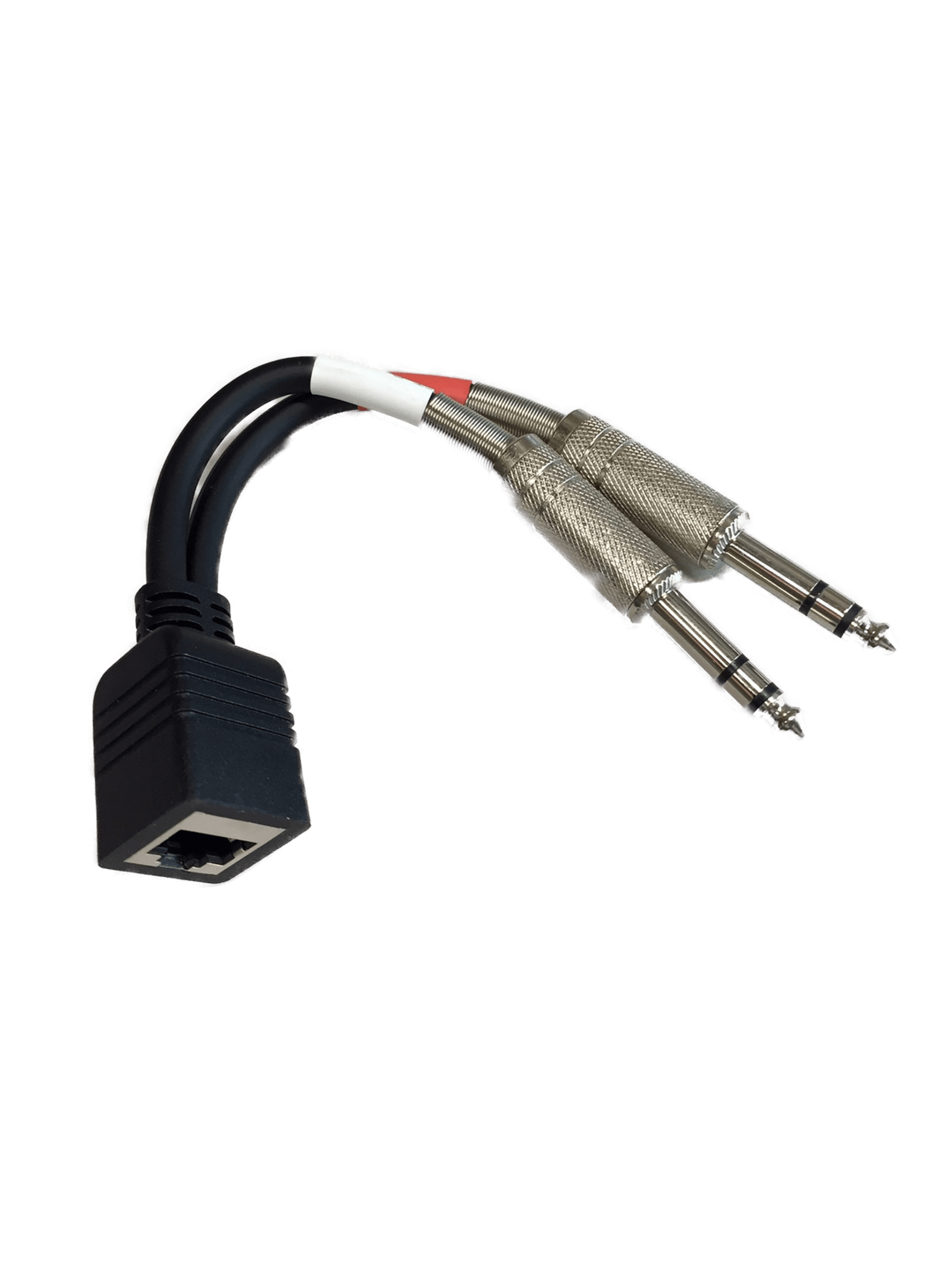

-Female RJ-45 to dual 1/4" TRS male connectors
-Cable is 7" long
-Pinouts meet EIA/TIA 568A/568B and At&T 258A standards
-(Studio Hub Compatible)
- Left (white) Pin 1 tip, Pin 2 ring, shield sleeve
-Right (red) Pin 3&6
Jacket: Black
RJ-45 Female to RCA-8"

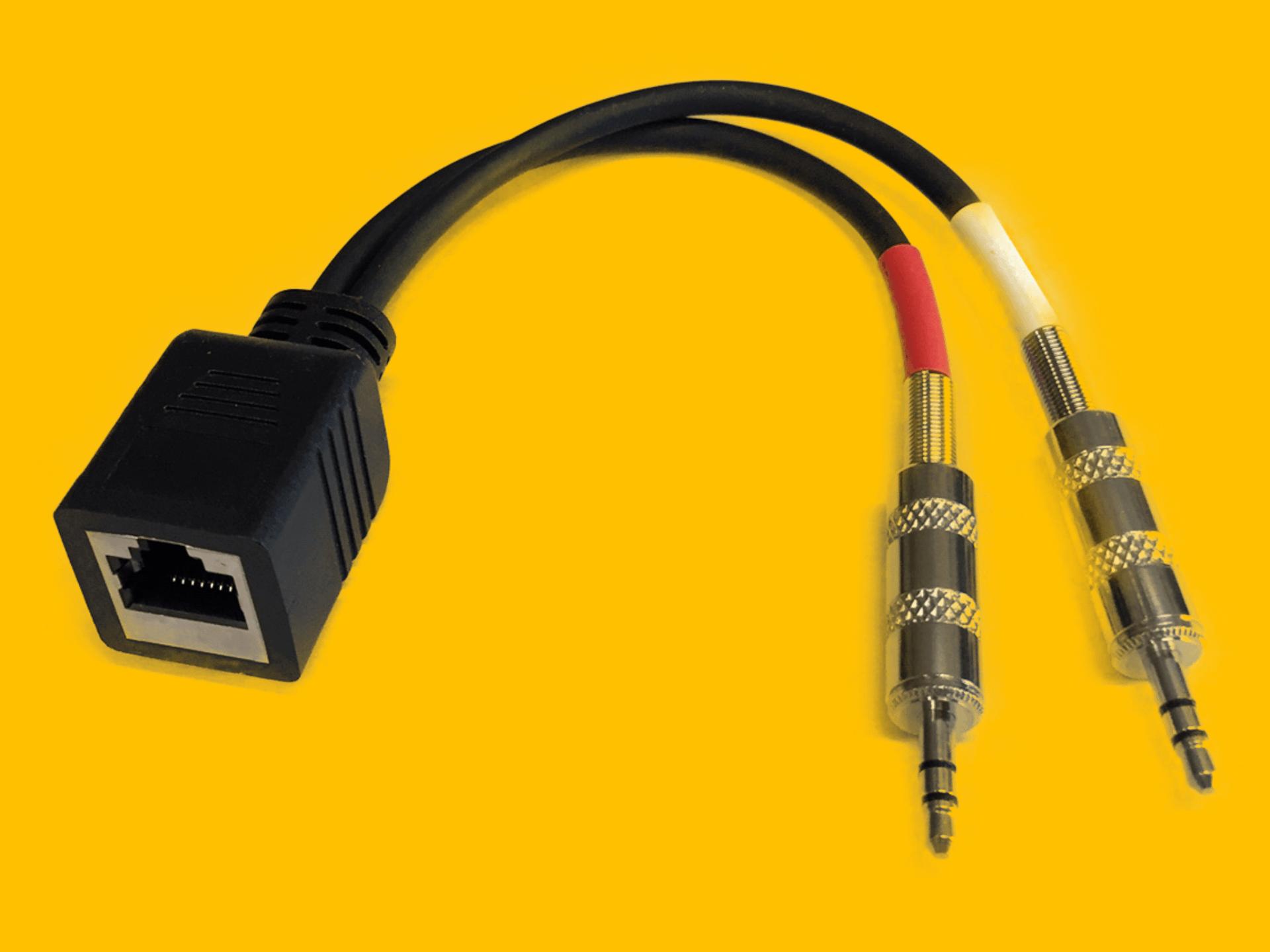

-Female RJ-45 to dual 1/8" TRS Male connectors
-Cable is 7" long
-Pinouts meet EIA/TIA 568A/568B and At&T 258A standards
-(Studio Hub Compatible)
- Left (white) Pin 1and 2
-Right (red) Pin 3&6
Jacket: Black
-Female RJ-45 to female RJ-45 connector
- Pinouts meet EIA/TIA 568A/568B and At&T 258A standards
-(Studio Hub Compatible)
- Left (white) Pin 1and 2
-Right (red) Pin 3&6

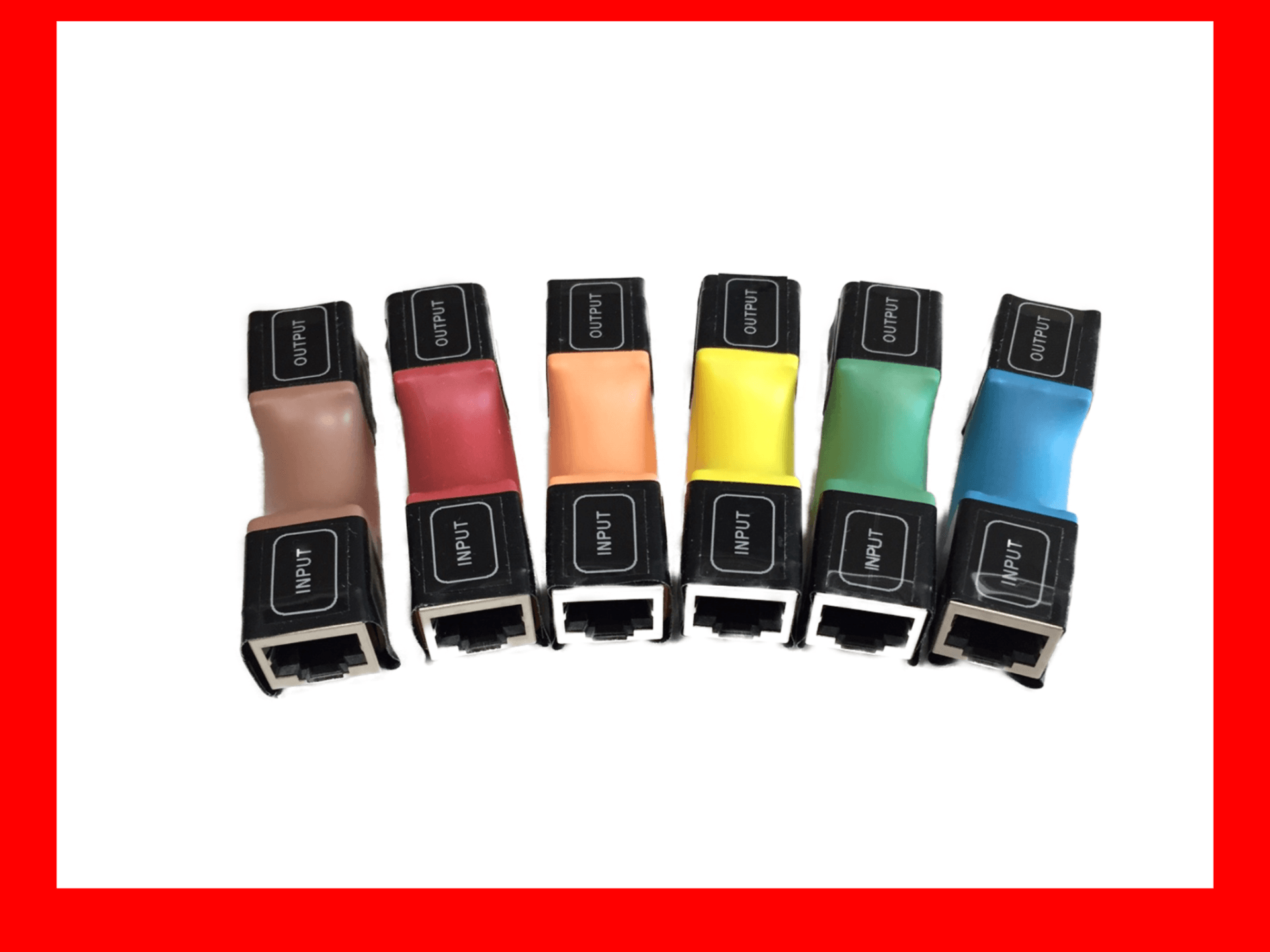

-ILP-10 (brown)-10 dB attenuator
-ILP-20 (red)-20 dB attenuator
-ILP-30 (orange)-30 dB attenuator
-ILP-40 (yellow)-40 dB attenuator
-ILP-50 (green)-50 dB attenuator
-ILP-60 (blue)-60 dB attenuator

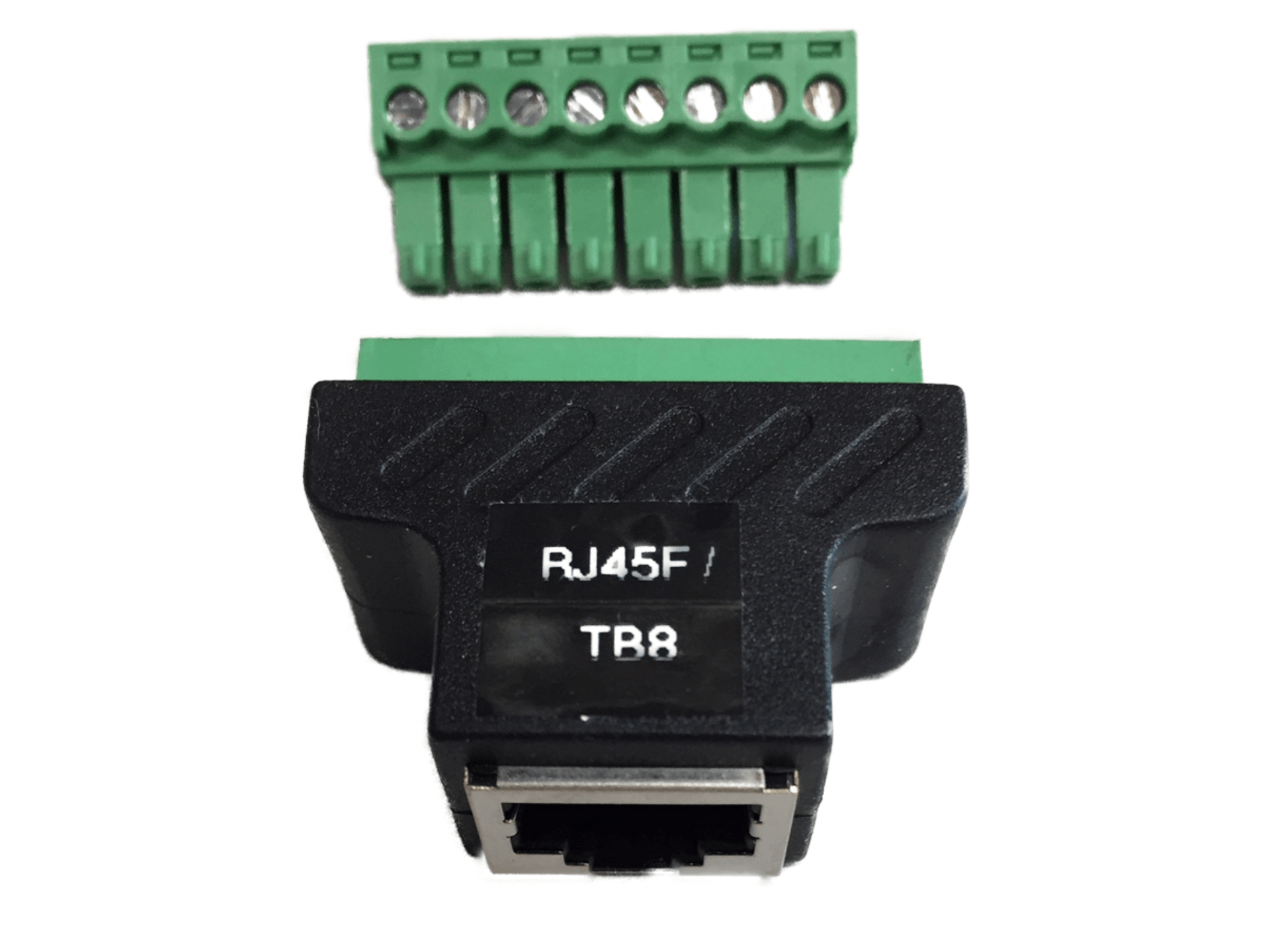

-Female RJ-45 to 8 pin terminal block
-8 pin RJ45F to 8 pin terminal block (point to point)

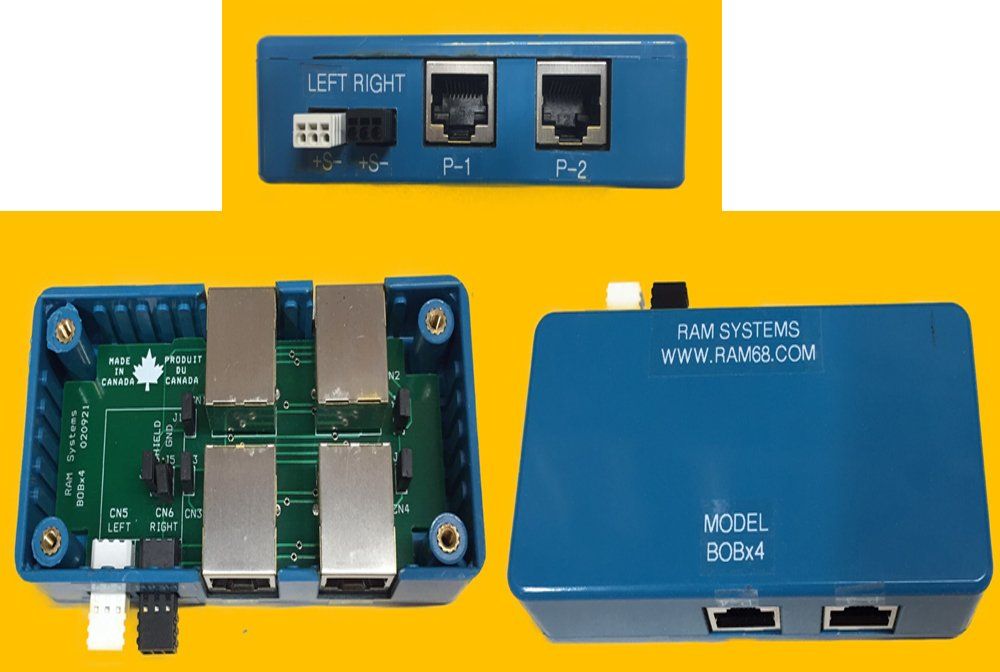

-RJ45F Break Out Box
-4 way breakout
-Seperate stereo input or output
-Shielding and grounding are selectable
-Dim: 6"W x 2"D x 1"H
RJ-45 Female to 1/8"-8"

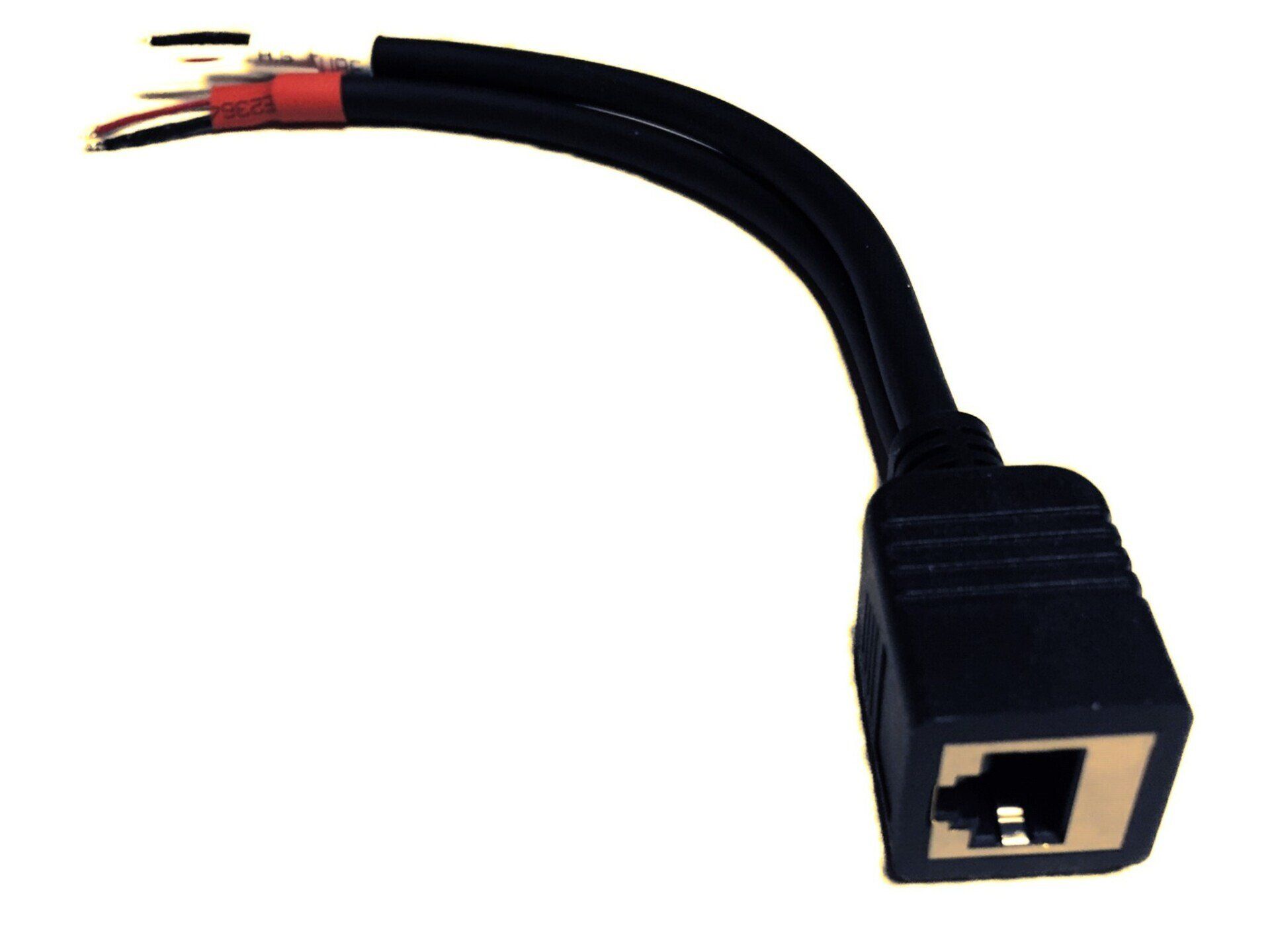

-Female RJ-45 to dual pig tail
-Cable is 7" Long
(Studio Hub compatible)
-Left Tail (white) Pin 1&2
-Right Tail (red) Pin 3 & 6
Jacket: Black

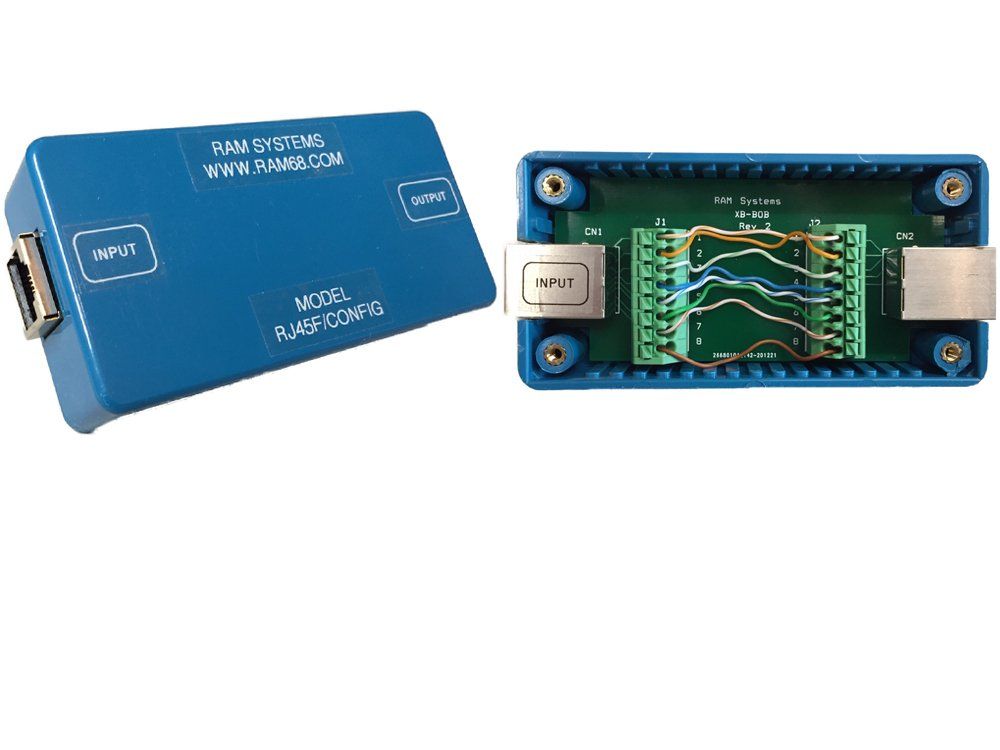

-Reconfigure cat5 cable.
-Female RJ45 connectors for input & output.
-Two 8 pin terminal blocks for configuration.
-Dim: 6”W x 2”D x 1”H
